Compare Case Sizes Across Peli, Storm & Air Ranges

Use the Case Comparison chart to quickly compare internal dimensions across the Peli Protector, Storm and Air case ranges. The table below shows the nearest size match from each series, helping you easily see which options are available for a specific case for your gear.

Protector

Storm

Air

Crate

Vault

Peli™ Protector cases are the most popular in the Peli™ range. They are manufactured with Copolymer Polypropylene using an open-cell core and solid wall construction, ensuring maximum strength and durability.

Peli™ Storm cases are injection-moulded protective cases that are lighter than the Protector range. Storm cases feature Press & Pull latches, Vortex valve and comfort-grip handles.

Peli™ Air cases are up to 40% lighter than Protector, designed to reduce structural waste, yet preserve the same strength. Moulded from an HPX™ resin formula that rebounds without breaking.

Peli™ CRATE provides stackable equipment storage with a tough HPXC resin body. Its IP67 rating protects against dust and water, while ModRail™ mounting options help secure equipment for transport.

Vault by Peli™ cases offer affordable equipment protection using high-impact polymer. They are crushproof, dustproof and weather-resistant, with push-button latches and ergonomic handles for carrying your equipment.

Shop Protector Shop Storm Shop Air Shop Crate Shop Vault
Model Int. Dimensions (mm) Model Int. Dimensions (mm) Model Int. Dimensions (mm) Model Int. Dimensions (mm) Model Int. Dimensions (mm)
1120 188 x 125 x 84 ---- -- --
1150 215 x 150 x 94 ---- -- --
1170 270 x 156 x 82 ---- -- V100C 279 x 203 x 114
1200 241 x 185 x 105 iM2050 241 x 190 x 108 -- -- --
1300 240 x 185 x 153 iM2075 241 x 190 x 184 -- -- --
1400 306 x 234 x 130 iM2100 330 x 234 x 152 -- -- V200C 356 x 254 x 140
1430 360 x 162 x 295 ---- -- --
1440 456 x 228 x 408 ---- -- --
-- iM2275 359 x 335 x 241 -- -- --
1450 380 x 266 x 153 iM2200 381 x 267 x 152 1507 385 x 289 x 216 -- --
1460 471 x 252 x 278 -- 1465 473 x 254 x 278 -- --
1470 408 x 278 x 98 ---- -- V300C 406 x 279 x 165
-- iM2435 444 x 165 x 394 -- -- --
1490 462 x 298 x 110 iM2370 462 x 307 x 132 1505 465 x 337 x 139 -- --
1495 492 x 342 x 110 ---- -- --
1500 435 x 292 x 155 iM2300 432 x 297 x 157 1485 453 x 260 x 155 CR45 437 x 353 x 279 --
-- iM2306 432 x 160 x 157 -- -- --
-- -- 1506 475 x 239 x 198 -- --
1510 514 x 288 x 191 iM2500 520 x 292 x 183 1535 522 x 286 x 188 -- V525C 505 x 269 x 185

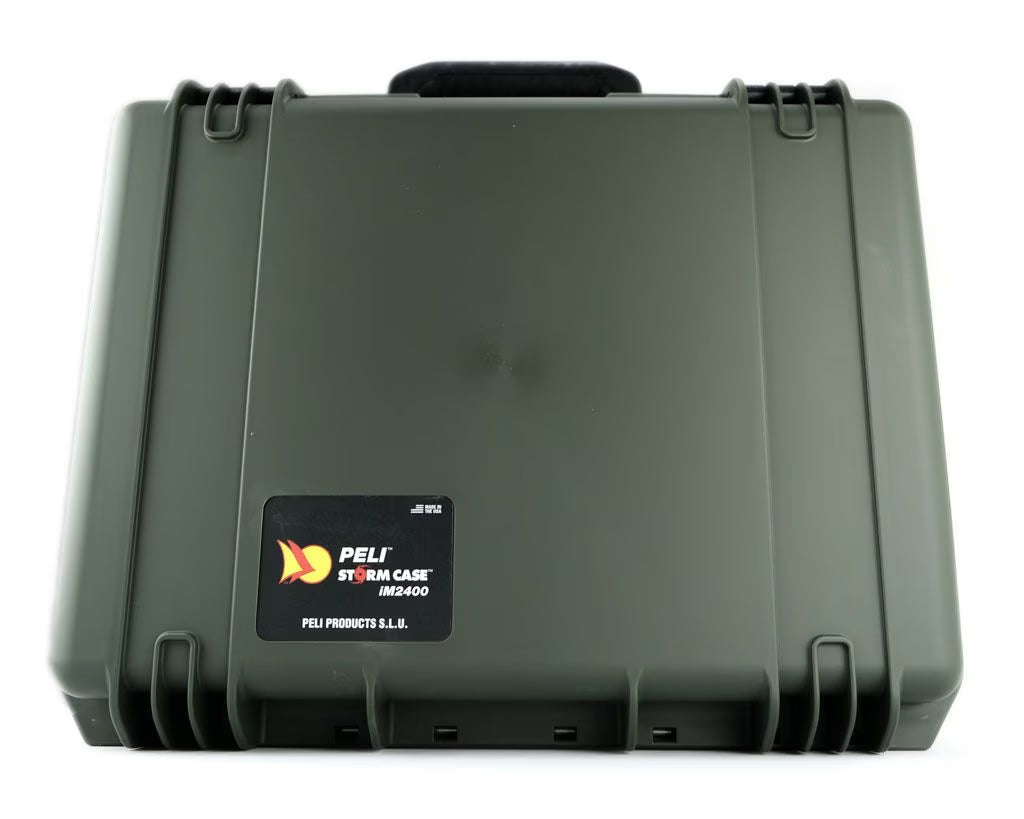

1520 455 x 325 x 170 iM2400 457 x 330 x 170 1525 522 x 289 x 170 -- --
-- iM2450 457 x 330 x 213 1557 440 x 330 x 247 -- --
1550 482 x 368 x 195 iM2600 508 x 355 x 196 1555 586 x 325 x 190 -- V550C 483 x 356 x 216
1560 516 x 390 x 228 iM2620 508 x 355 x 254 1607 535 x 400 x 295 -- --
-- -- 1556 549 x 273 x 228 -- --
-- -- 1595 650 x 382 x 229 -- --
1600 556 x 428 x 204 iM2700 559 x 432 x 203 1605 663 x 358 x 212 -- --
1610 562 x 431 x 268 iM2720 559 x 432 x 254 1606 623 x 312 x 260 -- --
1620 558 x 430 x 320 iM2750 559 x 432 x 322 1637 595 x 445 x 337 -- V600C 533 x 432 x 241
1630 730 x 554 x 392 ---- -- --
1640 632 x 632 x 364 ---- -- --
-- iM2875 571 x 536 x 289 -- -- --
1650 740 x 460 x 265 iM2950 736 x 457 x 267 1626 715 x 358 x 298 CR90 737 x 432 x 279 --
-- iM2975 736 x 457 x 350 1646 814 x 403 x 341 -- --
1660 740 x 522 x 446 iM3075 757 x 528 x 452 -- -- --
1670 713 x 419 x 233 -- 1615 755 x 395 x 238 -- --
1690 784 x 660 x 394 ---- -- --
1700 910 x 352 x 134 iM3100 927 x 355 x 152 1705 813 x 309 x 165 -- V700C 927 x 368 x 152
1720 1062 x 345 x 135 iM3200 1117 x 355 x 152 -- -- V730C 1118 x 406 x 159
1730 882 x 628 x 310 ---- -- --
1740 1059 x 345 x 302 ---- -- --
1780 1058 x 558 x 385 ---- -- --
1750 1280 x 339 x 135 iM3300 1282 x 355 x 152 -- -- V770C 1270 x 254 x 152
-- iM3410 1384 x 254 x 152 -- -- --
1770 1398 x 407 x 210 -- 1755 1397 x 356 x 203 -- V800C 1346 x 406 x 152
0340 457 x 460 x 450 ---- -- --
0350 507 x 510 x 498 ---- -- --
0370 610 x 610 x 605 ---- -- --
0500 950 x 532 x 655 ---- -- --
0550 1208 x 611 x 449 ---- -- --

Can't find the size you're looking for?
Get in touch.

Peli Protector Vs Peli Storm Vs Peli Air

What Are The Key Differences and Benefits?

Protector Cases

Protector Cases are waterproof, crushproof and dustproof cases manufactured with Copolymer Polypropylene.

Protector cases utilise double-step latches which create a stronger seal, rubberised handles for a comfortable grip and an automatic pressure release valve for quick equalisation after changes in atmospheric pressure. This allows the case to be easily opened after a flight, for example.

These case have undergone strict tests for water and dust ingress protection, to achieve their IP67 rating.

All three ranges are tested to UK, US and NATO mil-spec standards.

Shop now

Storm Cases

Storm cases are also waterproof, crushproof and dustproof, however, Storm cases are manufactured using HPX® Resin which makes them lighter, but slightly less strong at higher temperatures.

Aesthetically, due to the composition of the HPX® Resin body of a Storm Case, it marks easier than a Protector Case, but in no way will lose its protective properties.

Peli Storm cases also feature Press and Pull latches, which are easier to open than the double-step latches of the Protector case, but bear in mind that the latches and wheels of a Storm Case contain alloy pins, as opposed to stainless steel, so these cases should not come into contact with salt water, in order to avoid corrosion.

Shop now

Air Cases

Peli Air cases are similar in design to the Protector and again are waterproof, crushproof and dustproof.

Peli Air cases are are up to 40% lighter than their Protector counterparts, as they're made from a next gen lightweight HPX2™ resin. This is a proprietary formula that allows for the plastic to bend, but it will rebound without breaking.

The lightweight design of the Peli Air range does not compromise its durability. Most Peli Air cases feature double-step latches, however, Press and Pull latches have been applied to some models due to their popularity.

Shop now

Peli Crate

Peli Crate are still waterproof, crushproof and dustproof, however, they offer a unique interlocking design for secure, stable stacking.

Their fully removable, multi-position lids create easy access when movement might be restricted.

Built for demanding environments, Peli™ CRATE cases offer IP67-rated protection. The additional accessories allow you to transform the Crate into a configurable equipment storage system.

Shop now

Vault by Peli

Vault by Peli™ cases offer a more affordable alternative to the Protector range. They are crushproof and dustproof, but offer weather resistance rather than the waterproof protection of Protector, Storm and Air cases.

Manufactured from high-impact polymer, Vault cases feature push-button latches and ergonomic handles. They carry a three-year warranty, compared with the limited lifetime guarantee offered with Protector, Storm and Air.
